What is Port Aggregation?
Quick Definition: Port aggregation combines multiple network connections into a single logical link to increase bandwidth and provide fault tolerance. This technique ensures that if one link fails, network traffic can be rerouted through other available paths, maintaining seamless connectivity and enhancing network performance.
Port aggregation is an unsung hero of the networking world. Also, it is a key concept needed to ace the Network+ Exam. Port aggregation works by combining many network connections into a single, logical link. Port aggregation provides cost-effective scaling, redundancy, load balancing, and much more. Generally, you use LACP (Link Aggregation Control Protocol) to configure Port Aggregation automatically.
That's all the tip of the iceberg. We'll cover everything there is to know about port aggregation–starting with a more precise definition.
What is Port Aggregation?
Port aggregation logically links several different network connections into one link. Port aggregation is a great way to add fault tolerance to a network by providing extra paths for network traffic if one of the links fails.
Think of port aggregation as a highway. Without port aggregation, all traffic has to travel through one lane, leading to congestion and delays. If an accident occurs, all the traffic gets stuck, leading to significant delays. Port aggregation provides a multi-lane highway. That means if there's an accident in one lane, you can redirect traffic to other lanes.
So, bringing the analogy back home, one router can link two switches together. Even though there are two routers, there is one logical link between them and the router. This facilitates load balancing, fault tolerance, simplification, and more.
You may hear the terms "link aggregation" and "port aggregations" used interchangeably, but there are slight differences. Link Aggregation Control Protocol (LACP) is an open standard supported by most vendors. Port Aggregation Protocol (PAgP), on the other hand, is Cisco's proprietary and only used between Cisco devices.
Common Use Cases
Port aggregation is a widespread practice on most networks. It is used in enterprise networks, data centers, and other high-traffic environments. Port aggregation can be manually configured or via PAgP on Cisco systems. Complex networks are more apt to use PAgP, so let's discuss that.
Port Aggregation Control Protocol

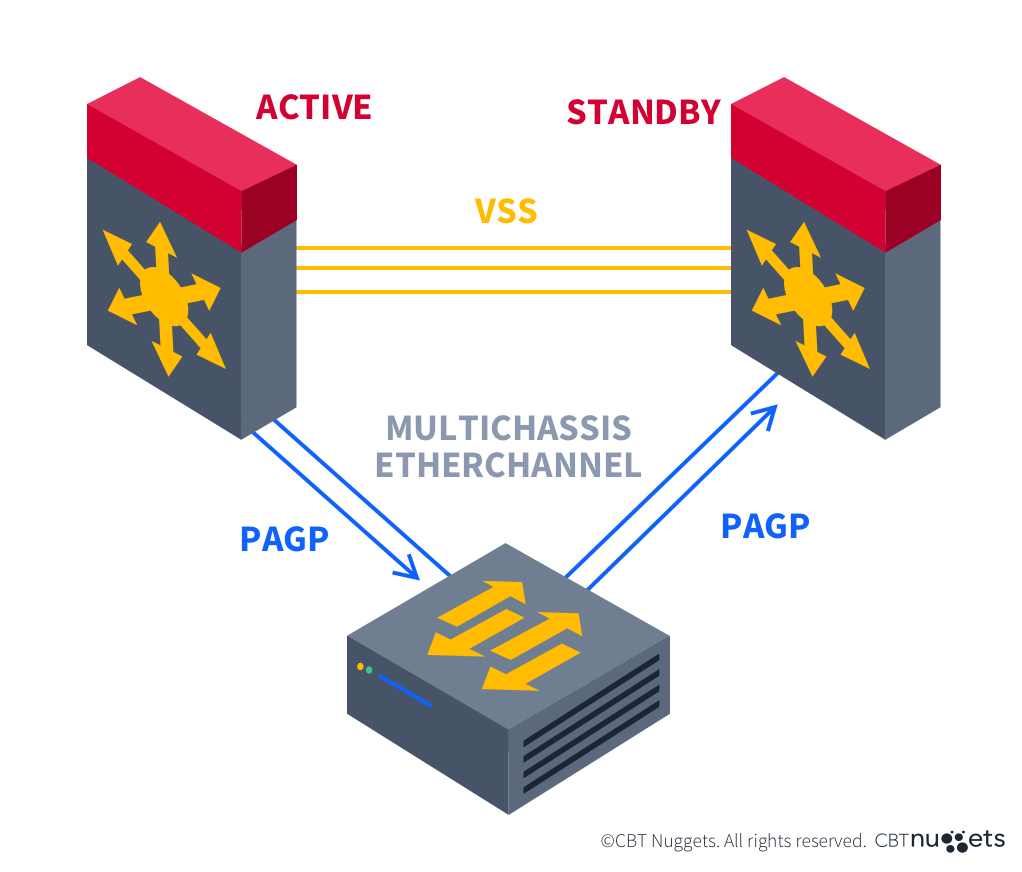

PAgP is a proprietary protocol introduced by Cisco in the mid-1990s. It automates port aggregation by linking multiple Ethernet cables together, increasing load balancing capabilities, fault tolerance, and robustness.
PAgP has two modes: Auto Mode and Desirable Mode.
Auto Mode: The interface is passive and waits for PAgP packets from the other side. It will never negotiate or commence a linkage. Auto mode is used when you want the port to take part in an EtherChannel, but only if explicitly asked by the other side.
To put your interface into PAgP auto-mode, enter the following command on your router:
channel-group 1 mode autoVerify the change by entering this next:
show etherchannel summaryDesirable Mode: In desirable mode, the interface actively tries to form bonds with other interfaces. Desirable Mode can also respond to PAgP packets from a port in auto mode. Think of desirable mode as the port that’s always ready to make new friends and create an EtherChannel bond with the other side.
Implementing desirable is pretty much the same as auto-mode:
channel-group 1 mode desirableNote the only difference is "desirable" instead of "auto."
Lastly, verify the changes with the same command:
show etherchannel summaryLink Aggregation Control Protocol
LACP has been around for several decades and was first defined in the IEEE 802.3ad standard in 2000. Now, you can find it under IEEE 802.1AX. LACP auto-negotiates port aggregation, which takes the load off SysAdmins, who'd have to do it themselves otherwise. To put it simply, LACP creates link aggregation groups (LAG) within a network.
Keep in mind that LACP is not enabled by default. To enable it, access your routers, switches, and other network devices. Enter the ports you would like to include in LACP, and voilà—you're good to go.
The key advantage of LACP is its simplicity. Manual port aggregation can take time and expertise to implement effectively.
One of the really cool features of LACP is dynamic link monitoring. Dynamic link monitoring detects instability on aggregated links and responds to changes. Based on the status of a port within the aggregate, LACP will shift traffic from one logical link to another. This form of self-governance is a critical component of LACP and creates a robust network.
How to Configure Port Aggregation with LACP
Configuring port aggregation with LACP is a straightforward process. I will go over how to configure LACP for a Cisco router, but first, you'll need to verify your router supports LACP. Also, make sure your router is on the most up-to-date software updates.
Choose Ports to Aggregate
Before cracking open the Cisco CLI on your router, verify which ports you would like to aggregate. Refer to the manual to determine port labels.
Access the Router CLI
Access the router CLI using a program of your choosing. I generally use PuTTY. Open the router manually to determine the router's IP address.
Enter Configuration Mode
To configure LACP, you need to enter privileged EXEC mode. To do so, type enable and hit enter. Then, type configure terminal to enter the global configuration mode.
Configure LACP on the Ports:
Now it's time to get to the good stuff. Now that we're in the Cisco Terminal, let's go over how to configure LACP.
You'll need to specify the interface range for the ports you want to configure. It will be the ports you marked down in the very first step. For example, interface range GigabitEthernet0/1 - 2 will configure GigabitEthernet ports 0/1 and 0/2.
Enter the interface configuration mode for the specified ports by typing interface <interface_name>. For example, interface range GigabitEthernet0/1 - 2
Enable LACP on the ports by typing lacp {active | passive}. Choose either active or passive mode based on your network requirements. Active mode initiates LACP negotiation. Alternatively, passive mode responds to LACP negotiation initiated by the peer device. Here is the command to do that: channel-group 1 mode active
Exit range configuration mode by typing exit.
Configure LAGs
All LACP interfaces need to be mapped to a logical port channel. Now that you activated LACP in the previous step, these are the actual ports you will enable. In our example, we'll use Port-Channel1. While in the CLI, type interface Port-Channel1. Once you are in, follow these steps:
Provide a Description: This description will provide the purpose of the LAG. Description Link Aggregation Group 1
Configure an IP Address (if needed for Layer 3 interfaces): Provide the IP address of the LAG. This is only needed for Layer 3 devices like routers. This step isn't needed for switches. ip address 192.168.1.1 255.255.255.0
Set Other Interface Parameters (e.g., VLAN, trunking, etc., if necessary): If your network leverages VLAN, trunking, or anything like that, specify it here. switchport mode trunk switchport trunk allowed vlan 10,20,30
Exit Configuration Mode and Save the Configuration:
end write memoryLastly, type show ether channel summary and show lacp neighbor to verify the configuration.
If you are unfamiliar with the Cisco CLI, this may seem confusing. It's important to take it one step at a time and truly understand what you are doing.
Best Practices for Port Aggregation and LACP Implementation
As the old saying goes, nothing is worth doing if it's not worth doing right. LACP implementation is no different, so we'll go over some best practices to keep you on the right track.
Proper Planning and Design
Before going hog wild configuring LACP, make sure all your devices can support it. The last thing you'd want is to hit a hardware bottleneck that causes issues due to lack of support. Also, traffic patterns should be analyzed to ensure the appropriate bandwidth allocation.
Consistency in Configuration
Verify all LACP settings are either in passive or active mode. Do not set them willy-nilly, the entire network needs them to be one or the other. Also, verify other configurations such as security and QoS settings are consistent among devices.
Monitoring and Maintenance
Use WireShark and other network tools to ensure the network has all the bandwidth it needs. If the bandwidth is tight, check your LAGs and ensure they are configured optimally. That could be one (of many) culprits that reduce bandwidth.
Testing and Validation
Always validate the LACP configuration and verify traffic is passing through the network. Log on to the device and check the settings. Test the logic link by failing a path and ensuring the dynamic link monitoring activates.
Troubleshooting Common Port Aggregation Issues
Many in the IT world are familiar with the saying, if you fail to plan, you plan to fail. Port aggregation is not perfect and may take some troubleshooting to get working. Before troubleshooting, always have vendor documentation in hand to ensure correct configuration. Here are a couple of tips and tricks to keep you chugging along when problems arise.
Physical Connections
Always check physical connections first. Make sure all the Cat cables are transmitting effectively. Verify you plugged in all the devices and connected them to one another. Make sure there are no red lights or other errors on any of your switches, routers, or other interfaces.
Misconfiguration
Make sure all link aggregations have identical configurations. If a switch has LACP set to passive while another has it set to active, then that will cause problems. Also, check the speed and duplex settings; those must be uniform across all Layer 2 and Layer 3 devices.
Another thing to consider here is VLAN misconfiguration. If traffic is routing to one VLAN but not another, it's possible that they were set up incorrectly. Verify the IP addresses used when you set up port aggregation.
Compatibility Problems
It is easy to forget to download the latest updates on your interfaces. However, outdated hardware can cause latency and security issues down the road. Updating your interface will mitigate issues such as latency, packet loss, and security flaws. This process is generally a cinch. Refer to the vendor documentation to figure out how to update the device.
Performance Degradation
Improper load balancing can also cause performance issues and latency on a network. When you configure cables for port aggregation, traffic will be load-balanced across them. Unfortunately, this can sometimes lead to uneven traffic distribution. Review the load balancing algorithm used and ensure it is per the documentation. Round Robin, adaptive balancing, and Layer 4 port-based are a few of the different algorithms.
Next, verify the switches used are up to snuff for the amount of traffic passing through the network. If traffic is slowing to a crawl and a particular switch is the common denominator, then it may be time to replace it.
Debugging Tools and Techniques
Luckily, several tools are available when troubleshooting port aggregation issues. Here are a few of the most commonly used ones.
WireShark: WireShark is a tried and true network monitoring application. Use Wireshark to verify traffic is properly load-balanced and arriving at the intended destination.
Documentation: Vendor documentation is critical when troubleshooting issues. Verify all settings are correct against the documentation.
Logs and Diagnostics: If your shop uses Splunk, Kibana, or another log aggregator, be sure to take advantage of it. These tools provide logs from applications, and will provide insight into your issues. If those tools aren't available, shell into the router and review the logs there. They are bound to provide insight into the issues you're facing.
Final Thoughts
Port aggregation is a crucial aspect of network design and implementation. It is crucial knowledge for passing the Network+ Exam. It also provides significant benefits in applications. For example, it brings scaling, fault tolerance, and load balancing to the table. Port aggregation combines several networking connections into a single, logical link. This nifty feature will load balance the network and enhance its bandwidth capabilities.
Understanding LACP and PAgP is as important as understanding port aggregation itself. These protocols simplify the configuration process by reducing administrative burden. It also offers dynamic link monitoring to maintain a robust network.
Follow best practices such as consistent configurations, monitoring, and planning. WireShark, log aggregators, and documentation are all required for effective troubleshooting.
Enterprise networks, data centers, and high-traffic environments all use port aggregation. Mastering port aggregation will significantly level up your skills and build a robust network.
