What is NIC (Network Interface Card) Teaming?
Quick Definition: NIC teaming, also known as link aggregation, is a method that combines multiple network interface cards to work together as a single logical interface. This enhances network performance and increases bandwidth while providing redundancy for better reliability in enterprise network environments.
It goes without saying that most businesses rely heavily on data. This means that network performance can have a big impact on operations. Let's examine NIC teaming and how it helps improve network performance in enterprises.
What is Network Interface Card (NIC) Teaming?
Network Interface Card (NIC) teaming combines multiple network interface cards to work together as a single unit. Doing this gives us a few advantages:
Increased bandwidth: The biggest advantage is the extra throughput you achieve with multiple interfaces.
Improved network reliability: If one of your NICs fails, the rest can take over without disrupting your network.
Better fault tolerance: Teaming gives us redundancy and reduces single points of failure.
Load balancing capabilities: Traffic is distributed across multiple NICs for better performance.
Most operating systems now support NIC teaming, including Windows Server, and most Linux distributions. As far as hardware support goes, most enterprise-grade network equipment can be set up for NIC teaming. Different manufacturers have slight variations on what it is called, so you’ll need to check what your device has available.
Below is a table of some examples of what manufacturers call NIC teaming.
HP | HP ProLiant Network Adapter Teaming | Combines NICs into a virtual adapter for fault tolerance. |
Cisco | EtherChannel | Bundles Ethernet links for increased bandwidth and redundancy. |
Microsoft | NIC Teaming | Configurable teaming in Windows Server for load balancing. |
Broadcom | Link Aggregation | Combines connections for throughput and redundancy. |
Intel | Intel PROSet Teaming | Creates teams of adapters for performance improvement. |
There are many different ways to set up NIC teaming, and it comes in different flavors. Each configuration is suited to different network environments:
Switch-Independent Teaming
This configuration doesn't require special switch support to set up, making it flexible and easier to implement on pre-existing equipment. It's usually better for environments where you don’t want to play with switch configurations.
Switch-Dependent Teaming
If your switch has compatible hardware, these setups use all of its features for advanced configurations. This is better for environments where you have control over both your server and switch configurations.

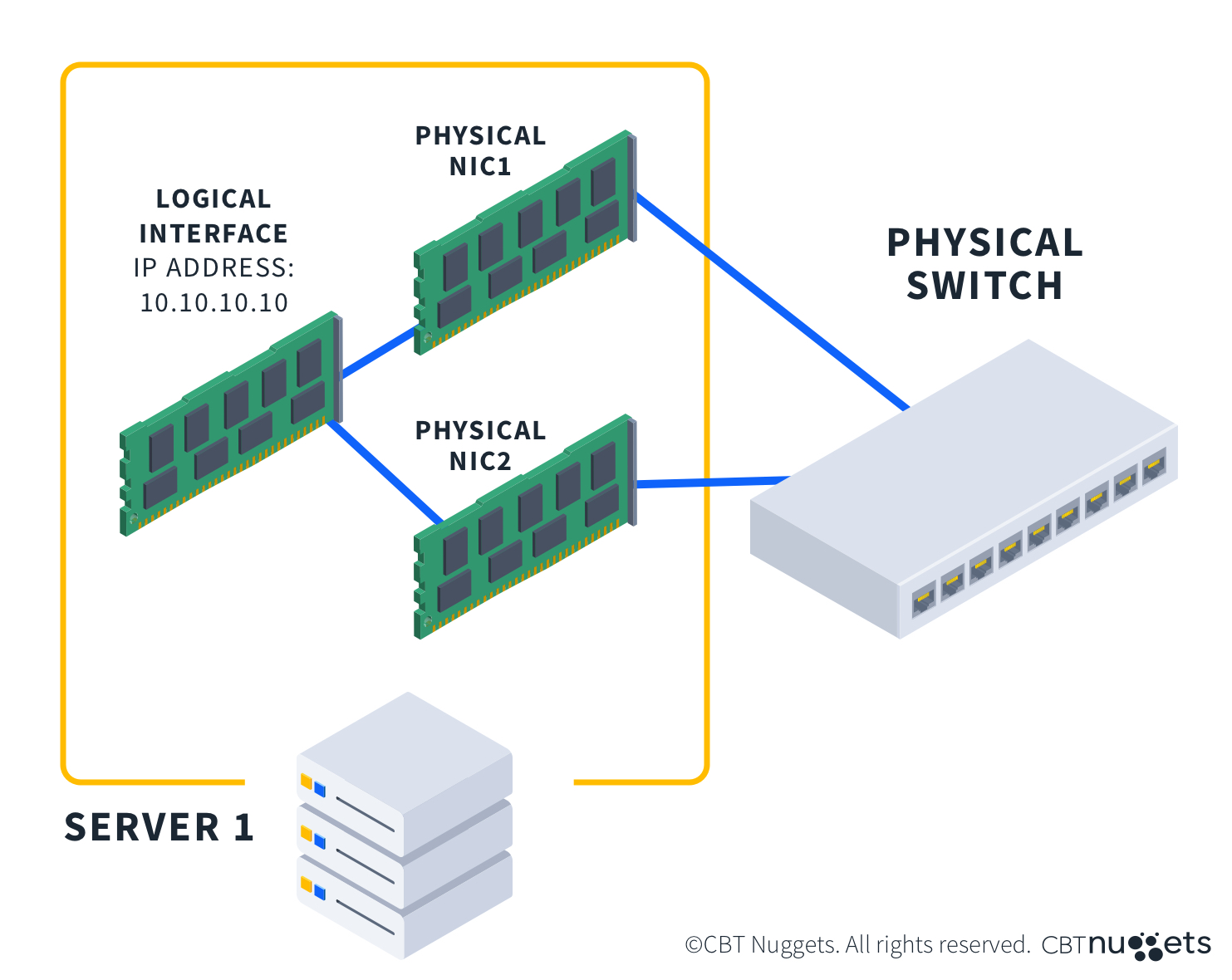

How NIC Teaming Works
Now that we know what NIC teaming is, we can look at how it works. Here's a simplified explanation:
Physical NICs are grouped together into a team.
A logical NIC is created to represent this team.
The logical NIC is assigned an IP address.
Network traffic is shared across the physical NICs based on the chosen load-balancing algorithm.
If a physical NIC fails, traffic is automatically redirected to the remaining functional NICs.
This setup helps ensure that network traffic continues to flow even if a single network card has issues.
Note: Monitoring and understanding interface statistics and status is crucial for maintaining optimal NIC performance and identifying potential network issues.
How to Set Up NIC Teaming
Setting up NIC teaming sounds complicated, but it’s easier than you might think. Let's walk through a theoretical step-by-step guide:
1. First things first: make sure your hardware supports NIC teaming.
2. Install multiple NICs in your server.
3. Set up a NIC team in your operating system.
From here, the process will vary by server.
For Windows Server users:
1. Open Server Manager
2. Navigate to "Local Server"
3. Click on "NIC Teaming"
4. Select the NICs you want to team
5. Choose your teaming mode and load balancing algorithm
For Linux users, the process is a little different for each distribution, but it usually involves using the `bonding` module:
1. Load the bonding module. You’ll usually do this with the ‘modprobe bonding’ command to load it. For Debian-based systems, you might need to edit some configuration files like /etc/network/interfaces.
2. Create a bond interface
3. Assign physical interfaces to the bond
4. Configure network settings for the bond
Examples of Load Balancing Algorithms
The most important thing to get right for NIC teaming is your configuration. You’ll want to choose load-balancing algorithms that suit your network traffic patterns and set up failover settings that work best for your setup. Common examples of algorithms you might use include:
Dynamic: This uses a hash based on source and destination TCP ports and IP addresses to balance your outbound traffic. It dynamically redistributes outbound streams to all team members for an even distribution.
Transport Ports: This is similar to Dynamic, but instead focuses on using TCP ports to create a hash. It then assigns packets with matching hash values to available interfaces.
IP Addresses: Based on the request's source and destination IP addresses, a hash is created. It then assigns packets with matching hashes to specific interfaces.
MAC Addresses: This function uses the source and destination MAC addresses to create a hash and then directs packets with matching hashes to designated interfaces.
Load Balancing and Failover Strategies
The best way to think about load balancing in NIC teaming is like traffic across multiple lanes on a highway. Having more lanes helps prevent congestion. Here are some standard load balancing steps to consider:
LACP (Link Aggregation Control Protocol): This protocol provides dynamic negotiation and configures link aggregation between switches and servers. Its main job is to speed up data transfers and improve overall network performance.
Address Hash: This method looks at the source and destination addresses in the data packets. It generally uses the same NIC for traffic between matching source-destination pairs for better performance. This spreads out the workload and keeps your connections stable.
Hyper-V port-based teaming: This is aimed more at Microsoft's virtualization environments and distributes traffic based on the Hyper-V switch port.
Failover mechanisms in NIC teaming act like a safety net. If one NIC fails, then traffic is automatically redirected to the NICs that are still up and running. Having redundancy helps your network stay up even when individual components fail. Some failover strategies are:
Active-Active: All NICs in the team are actively processing traffic.
Active-Passive: One NIC handles traffic while others stand by as backups.
Load-Based Teaming: Traffic is distributed based on the current load of each NIC.
You’ll need to look at your specific requirements for how to handle failovers for different network components like servers and switches. Most networks have a combination of different failover types for each network segment. This can be complicated to figure out, so planning beforehand is essential.
How to Monitor and Manage NIC Teams
Monitoring NIC teams is important to ensure your configuration is performing as it should. Here are some tools that can help you stay on top of your NIC teams:
For newer Linux installations you can try `teamctl`. It shows you the status of your NIC team and also allows you to add or remove NICs. You can also look at more details with ‘teamctl team0 state’ , which will give you the basic state of your team.
Third-party network monitoring software, such as SolarWinds NPM and ManageEngine OpManager, have modules related to NIC Teams that provide more details about their performance.
Set up alerts for events like NIC failures or performance degradation so you’re never caught off guard.
When you monitor NIC teams, you’ll want to pay attention to:
Bandwidth usage
Packet loss
CPU usage of the teaming process
Troubleshooting NIC Teaming Issues
If you run into issues with NIC teaming, you'll want to start by checking:
Physical connections: Start with the basics and make sure all cables are properly connected.
Driver compatibility: Verify that all NICs are using up-to-date drivers.
Switch configurations: If you are using switch-dependent teaming, make sure that your switch settings are correct.
Load balancing settings: Choose the right algorithm that is appropriate for your traffic patterns.
You must be proactive to ensure that your NIC Teams are running correctly. Update drivers regularly, monitor performance metrics, and adjust configurations as your network needs evolve.
Best Practices for NIC Teaming
There is no one-size-fits-all solution for NIC teaming, but there are some basics that you should try to cover. Consider using some of these best practices to get the most out of your NIC teaming setup.
Use the same make and model NICs in a team for best results.
Test your failover scenarios to make sure your redundancy is working.
Make notes about your NIC teaming setup and document everything. This makes it much easier to troubleshoot later if you run into problems.
Monitor team performance and adjust settings if you need to.
Keep all of your NIC drivers and firmware updated.
Conclusion
NIC teaming is a great way to boost performance and improve failover capabilities at the same time. Implementing NIC teaming is pretty straightforward, but fine-tuning and getting things just right for your environment can take a little extra effort. When done right, you will boost your network's performance and improve data speeds.
