What is FHRP (First Hop Redundancy Protocol)?

Quick Definition: First Hop Redundancy Protocol (FHRP) is a network protocol family that provides redundancy for default gateways in IP networks. FHRP ensures when a primary router fails, a backup router automatically takes over—often without anyone noticing.

No one likes network downtime. When your default gateway router fails, entire departments lose internet access, and nobody can get any work done. First Hop Redundancy Protocol (FHRP) addresses this Achilles' heel by creating a virtual router that keeps network traffic flowing even when a physical device fails.

Want to know how FHRP works? We'll cover that and explore the different types in use today.. In the end, you’ll learn why FHRP should be a part of your network resilience strategy and how to implement it.

What are the Fundamentals of Redundancy and High Availability?

Before we start learning about FHRP, we first have to understand what it was built on.

Network Redundancy Basics

Network redundancy means having backups that can take over when the primary infrastructure fails. Redundancy is needed for network components like:

• Multiple physical network devices (routers, switches)

• Redundant network links and connection paths

• Duplicate power supplies and cooling systems

• Backup services and applications

Redundancy protects against single points of failure that could bring down your entire network.

High Availability Concepts

You need redundancy for systems that require high availability (HA). These are systems, such as servers and routers, that keep your business operations going.

HA is usually measured as a percentage of uptime, and enterprise-grade businesses usually target the "five nines" (99.999%) of availability. This means roughly 5 minutes of downtime per year can be tolerated.

To get there, you’ll need to look at these safeguards:

• Automatic failover mechanisms

• Fast failure detection

• No service interruption during failovers

• Self-healing capabilities on servers, applications, and appliances

FHRP provides high availability with automatic failovers that are not disruptive for your default gateway. This means that your network won't suffer any downtime when there is a failure.

What is the First Hop Redundancy Protocol (FHRP)?

FHRP addresses the default gateway redundancy problem. When a device needs to communicate with another network, it sends traffic to its default gateway (first hop). If this gateway fails, then communication will be interrupted unless FHRP is in place.

Purpose and Benefits of FHRP

The primary purpose of FHRP in networking is to eliminate the default gateway as a single point of failure. It offers several key benefits:

• Uninterrupted network connectivity during failures

• End-users don't notice failovers because of how seamless it is

• Improve your network’s reliability without major infrastructure changes

• Some FHRP variants also have load-balancing capabilities

• Less manual intervention is needed during network failures

Types of FHRP Protocols

There are several FHRP options, each with unique features offered by different vendors.

Hot Standby Router Protocol (HSRP)

• Cisco’s own proprietary protocol

• Uses an active/standby router model

• Provides virtual IP and MAC addresses for the router group

• Supports authentication for security

Virtual Router Redundancy Protocol (VRRP)

• Industry-standard (RFC 5798)

• Similar to HSRP but with some technical differences

• Works across a few different vendors’ devices

• Has slightly faster convergence than HSRP

Gateway Load Balancing Protocol (GLBP)

• Another Cisco proprietary protocol

• Provides load balancing across multiple routers

• Can distribute traffic using round-robin, weighted, or host-dependent methods

• Uses resources more efficiently compared to HSRP/VRRP

Common Address Redundancy Protocol (CARP)

• An Open-source alternative to VRRP

• Developed to avoid patent issues with VRRP

• Used primarily on BSD-based systems

As you can see, Cisco is quite prominent in the development of these protocols. Deciding which FHRP Cisco protocols you will use in your environment (HSRP, VRRP, or GLBP) depends on whether you need load balancing as well as FHRP, or any other added feature that isn’t available in the default protocol.

How Does FHRP Work?

The main concepts behind all FHRP versions are quite similar, but there are some differences.

Virtual Router Creation

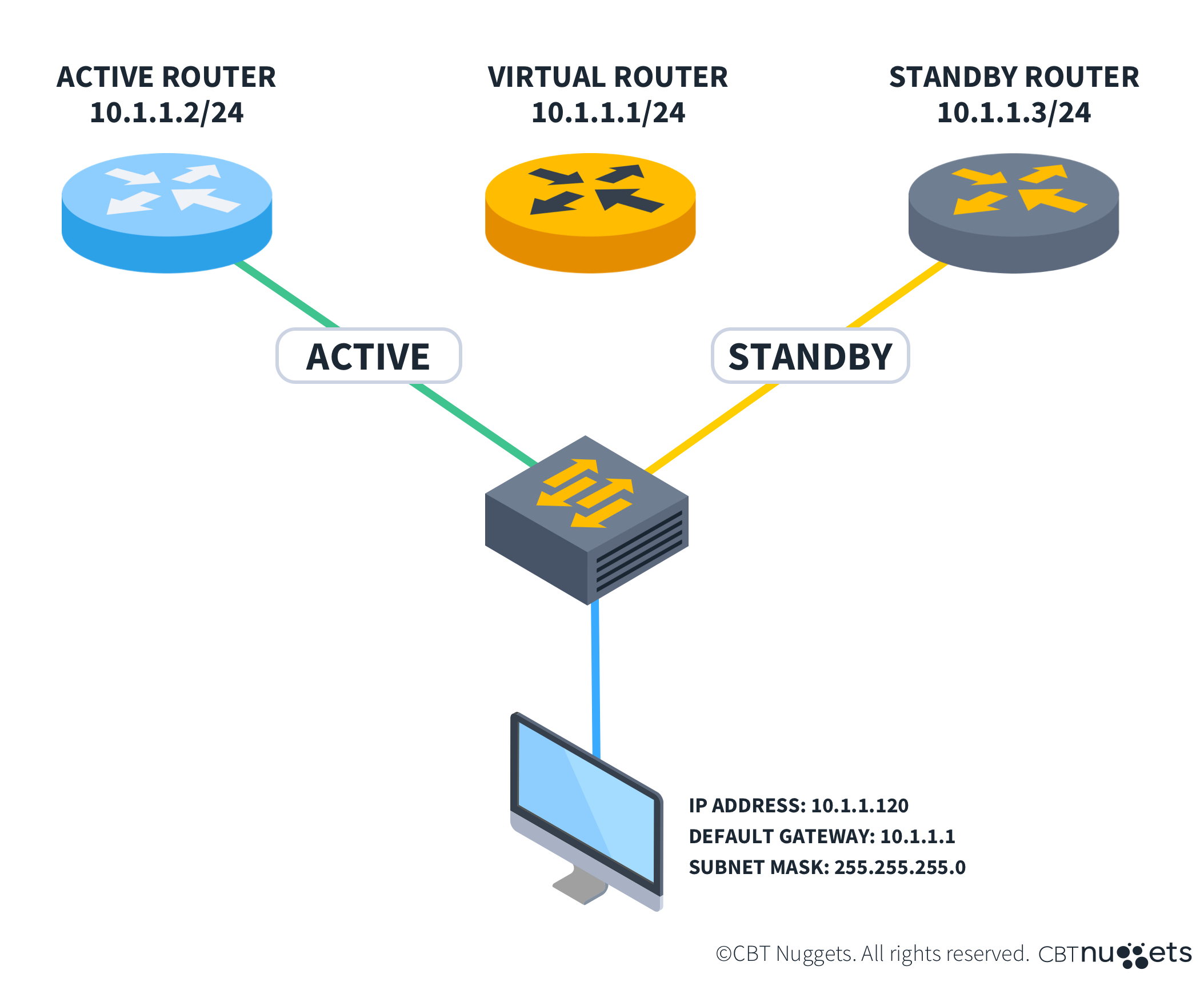

FHRP creates a virtual router that is essentially the default gateway for hosts:

1. More than one physical router is configured as part of an FHRP group.

2. The group shares a virtual IP address and MAC address.

3. Network devices are configured with this virtual IP as their default gateway.

4. One router is elected as active/primary and handles traffic.

5. The other routers monitor the active router's status, waiting for a failure.

Router Election Process

The election process decides which physical router is actively processing traffic:

• In HSRP and VRRP, routers are set with priority values.

• The router with the highest priority becomes active/master.

• If the priorities are equal, then the highest IP address usually wins.

• If preemption is enabled, a higher-priority router can automatically take over when it comes back online.

Failover Mechanism

When the active router fails, these steps usually happen automatically:

1. Standby routers detect the failure through missed hello packets from the active router.

2. A new active router is elected from the standby routers.

3. The new active router takes ownership of the virtual IP and MAC.

4. It starts processing traffic with no detectable disruption to network services.

5. The transition is invisible to network devices, so they carry on sending traffic to the same virtual address.

The measurement of how long it takes to detect a failure and change to a new router is called convergence time. The latest FHRP implementations can change over in under a second, so disruptions are very small, if any.

How to Implement FHRP in Network Design

Setting up FHRP takes a lot of planning of how it will fit in with your network layout and architecture.

FHRP Configuration Best Practices

When you set up FHRP on your network devices, you should generally:

• Use authentication to stop unauthorized routers from joining.

• Adjust the hello and hold timers for faster failure detection.

• Configure tracking to monitor upstream connectivity.

• Tweak preemption carefully with delay to avoid router flapping.

• Document virtual IP addresses and group numbers for your records.

HSRP Implementation Example

Here's a basic example of HSRP configuration on Cisco devices:

Router 1 (Primary):

interface GigabitEthernet0/0
 ip address 192.168.1.2 255.255.255.0
 standby 1 ip 192.168.1.1
 standby 1 priority 110
 standby 1 preempt

Router 2 (Backup):

interface GigabitEthernet0/0
 ip address 192.168.1.3 255.255.255.0
 standby 1 ip 192.168.1.1
 standby 1 priority 100

Both routers are part of HSRP group 1 with virtual IP 192.168.1.1. Router 1 has a higher priority and will be active unless it fails.

Integration with Other Redundancy Mechanisms

For added network resilience, FHRP should be one part of your redundancy plan:

• Add it to Spanning Tree Protocol (STP) for layer 2 redundancy.

• Use dynamic routing protocols for path redundancy.

• Think about how your software-defined networks (SDN) are set up, and how they would fit in with your plan.

• Setup network monitoring to measure failover events and detect other issues that could be causing performance issues.

Challenges and Considerations with FHRP

FHRP has many positive aspects, and it is definitely a step in the right direction, but you should also know its limits.

Limitations and Potential Issues

Implementing First Hop Redundancy Protocol has some common issues:

• Protocols between different vendors are not all compatible.

• Configuration is more complicated.

• You need to make sure that you set everything up just right to avoid other routers becoming active.

• Security needs to be beefed up to prevent unauthorized devices from joining FHRP groups.

• There is some extra overhead on routers from hello packets in large environments.

Security Considerations

To really secure your FHRP implementation, you’ll need to:

• Enable authentication between FHRP routers.

• Use strong passwords or key chains for authentication.

• Use access control lists to restrict FHRP traffic.

• Watch out for unauthorized FHRP advertisements.

• Keep router firmware updated to weed out security vulnerabilities.

FHRP in Modern Networks

As networks keep improving and developing, so does FHRP:

• Software-defined networking (SDN) could add extra redundancy possibilities for virtual environments.

• Cloud environments usually have their own high-availability implementations.

• Virtual routers and containers need different gateway redundancy options.

• IPv6 networks use slightly different approaches with HSRPv6 and VRRPv3.

Understanding the fundamental workings of FHRP is still important if you want your network to be resilient and available 24/7.

Conclusion

Automatic failover in networking is very important, especially for remote sites that require travel time for a network engineer to arrive. When users are not able to connect to the network, businesses start losing money, which impacts everyone in the organization. FHRP helps keep data flowing during failures, which keeps everyone in the business happy.

If you are designing a network, FHRP should be a component of your high-availability plan, especially in enterprise environments where downtime is unacceptable.
