The Everyday Guide to DSL Modems

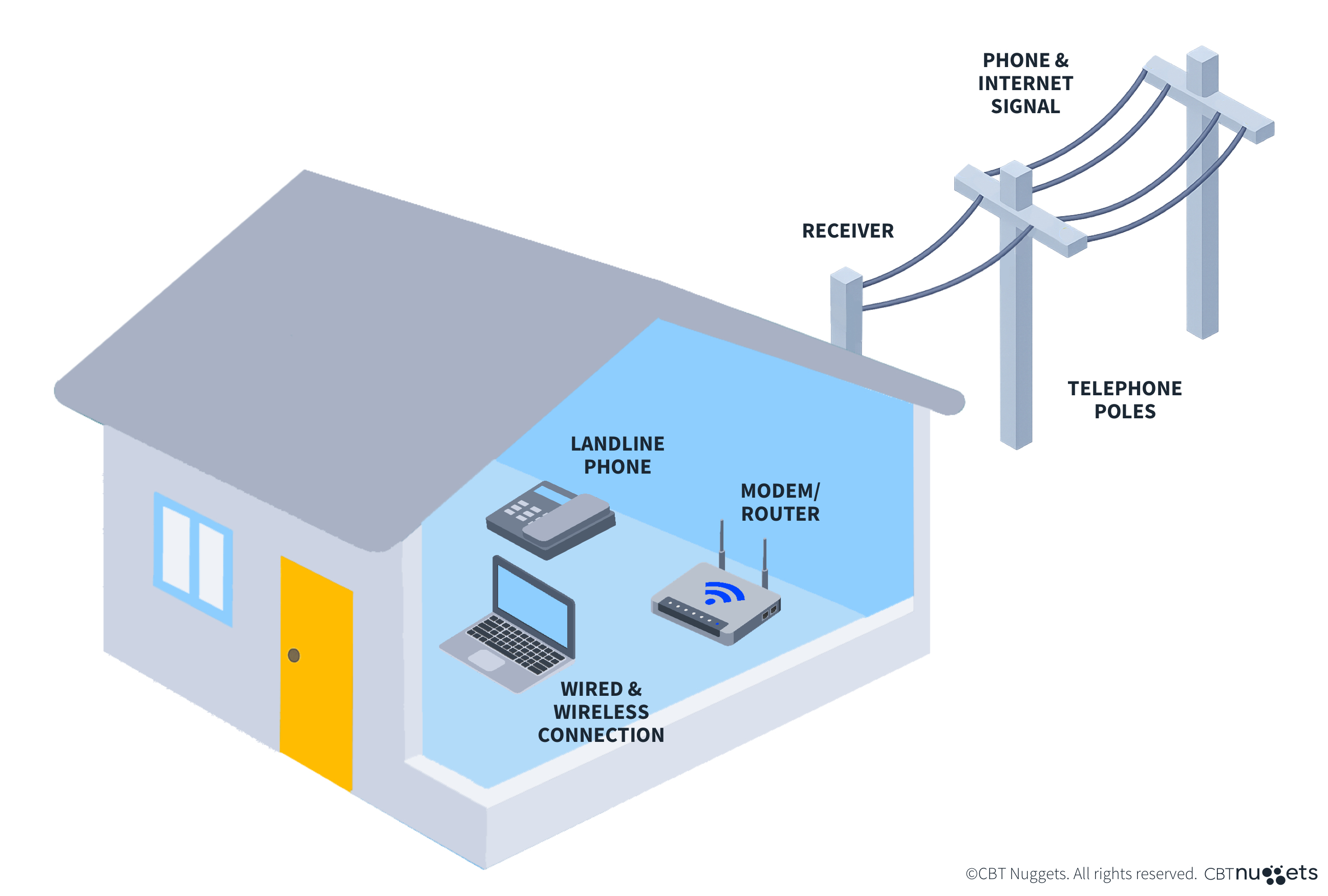

Quick Definition: DSL modems are used primarily in rural areas, small businesses, and multi-dwelling units to connect network devices to the Internet by modulating digital and analog signals over copper phone lines.

In today’s world of cable, fiber, and satellite connections, the Digital Subscriber Line (DSL) modem is still widely used in some networks. While newer solutions are great for densely populated areas, more rural areas with legacy infrastructure still rely heavily on DSL to stay connected to the internet.

In this article, you'll learn the basics of DSL modems, including what they are, how they compare to other technologies, and how to configure and troubleshoot these devices.

Step 1: Understand What A DSL Modem Is

A DSL modem is a device that homes and offices use to connect to the internet via a standard telephone line. While many people have abandoned traditional phone lines in favor of cell phones, the phone line infrastructure remains useful, and DSL modems tap into that utility.

Technically speaking, DSL modems convert (or modulate) digital network signals into analog signals so they can travel over the copper wiring in phone lines. On the receiving end, they demodulate those analog signals back into digital data that your devices can use.

DSL Modem vs. Cable Modem

Both DSL and cable modems serve the same purpose (connecting you to the internet), but the underlying technology differs in several ways:

• Signal Type: DSL sends digital data over phone lines using higher frequencies than voice calls, allowing you to talk and browse simultaneously. Cable modems use coaxial cables, which can carry a broader range of frequencies, often allowing for faster speeds.

• Setup: DSL modems typically plug into a standard phone jack via an RJ-11 connector, while cable modems connect to a coaxial port. In most cases, cable providers handle installation, whereas DSL can sometimes be self-installed with a splitter to separate phone and data signals.

• Usage: DSL is common in rural or suburban areas where cable infrastructure isn’t widespread. Cable internet is more prevalent in cities and towns that already have existing cable TV networks.

• Lifespan and Maintenance: Both types of modems can last four to six years with proper care, though cable modems may need replacement sooner in areas with frequent network upgrades. DSL hardware often remains usable for a longer period because the underlying technology changes more slowly.

DSL Modem vs. Router

A DSL modem, or any modem, is the device used to connect a network to the internet. In contrast, a router is a device that directs data traffic between different networks, ensuring data reaches its destination efficiently. If we were to look at a DSL modem and a router on the OSI model, the DSL modem sits at layer one as a physical connection device, whereas a router sits at layer three.

DSL modems and routers differ in other ways, as well:

• Signal Type: A DSL modem handles analog-to-digital and digital-to-analog conversion. A router only processes digital data; it doesn’t convert signal types.

• Setup: The modem connects to your phone line and has a single Ethernet port for output. The router connects to the modem via Ethernet and provides multiple Ethernet ports and/or Wi-Fi for your devices.

• Usage: A modem is required for internet access. A router is optional if you only have one device, but it is essential for multiple devices or wireless networking. Many modern devices combine both functions in one unit.

• Lifespan and Maintenance: Both last around four to six years. Routers often require firmware updates for security, while modems are typically replaced only when the ISP's technology changes.

Step 2: Key Components and Standards

Now that we have a better understanding of what a DSL modem is, let’s dive deeper into how it functions.

DSL Standards

DSL (Digital Subscriber Line) isn’t a single technology; rather, it’s a family of standards that define how data travels over traditional copper telephone lines. Each standard sets rules for factors such as maximum speed, distance limits, and how bandwidth is allocated between uploads and downloads. Which one you get depends on your ISP’s infrastructure and your physical distance from their equipment. DSL standards include:

• ADSL (Asymmetric DSL): ADSL is most commonly used in homes and provides better download speeds than upload speeds.

• VDSL (Very-High-Bit-Rate DSL): VDSL offers faster speeds than ADSL, but only over shorter distances. This is primarily used in more urban areas, rather than rural areas.

• G.fast: G.fast offers the fastest speeds of the three standards and is more commonly found in buildings with fiber connections.

Each of these standards comes with its benefits, limitations, and requirements. Consult which standards your ISP (Internet Service Provider) supports when selecting a modem.

Modulation Techniques

As previously mentioned, DSL modulates and demodulates signals to convert digital data into analog and vice versa, which makes it possible to transmit digital data over copper phone lines. Different DSL standards use different modulation techniques to maximize speed and reliability over varying distances. The two most commonly used modulation techniques are:

• QAM (Quadrature Amplitude Modulation): QAM combines changes in both amplitude (signal strength) and phase (timing) to send multiple bits of data per signal. It’s highly efficient for transmitting lots of information within a limited bandwidth, which is why it’s used in ADSL and VDSL for downstream (download) data. However, QAM can be more susceptible to noise, so signal quality is crucial for high performance.

• OFDM (Orthogonal Frequency-Division Multiplexing): OFDM splits the available bandwidth into many smaller sub-channels (or subcarriers) that transmit data in parallel. This makes it highly resistant to interference and signal degradation, which is why it’s favored in high-speed DSL standards like VDSL2 and G.fast. The “orthogonal” design ensures subcarriers don’t interfere with each other, even when packed closely together.

Interface Options

Modern DSL modems typically include specific physical components, like a DSL port, Ethernet port, and USB port. DSL ports connect to the phone line, typically via the wall jack. The Ethernet port will connect to either a router or a computer. Finally, the USB port is sometimes (less common these days) used to connect directly to a computer either for connectivity or to draw power.

While it’s most common to connect a modem to a router, you could also connect the modem directly to a computer, or connect it to a switch if you’re working with more than one wired device.

Step 3: Setting Up and Configuring a DSL Modem

Setting up a DSL modem is a relatively straightforward process. Here's how to get started:

Check Compatibility

 Before unboxing your modem, make sure it’s a match for your service:

• ISP Approval: Confirm your modem is on your ISP’s compatibility list (e.g., CenturyLink-compatible models).

• DSL Type and Standard: Check that it supports your DSL type (ADSL, VDSL, or G.fast) and the correct standard (e.g., ADSL2+ or VDSL2).

• Speed Rating: Ensure the modem can handle your plan’s maximum download/upload speeds. Using an older model may bottleneck your connection.

Configure Basic Settings

Once you’ve confirmed compatibility, it’s time to log into the modem’s interface and set the core connection parameters that will get you online.

• Access the Interface: Connect your modem to a computer via Ethernet, open a web browser, and enter the modem’s IP address (often 192.168.x.x) to log in.

• Set DSL Parameters: Choose the correct DSL mode, modulation type (QAM or OFDM), and line encoding based on your ISP’s specifications. Many modems auto-detect these, but manual entry ensures accuracy.

• Choose Network Mode: Decide between connecting the modem directly to a single device or to a router. If using a router, enable bridge mode on the modem so the router can handle network management.

Secure the Modem

Even if your ISP offers a way to pre-configure the modem, it's worth logging in to check the security settings. Before using, check these:

• Change Admin Credentials: Replace the default username/password with something strong and unique.

• Enable Security Features: Turn on WPA2 or WPA3 encryption for built-in Wi-Fi, and activate any firewall settings.

• Update Firmware: Check for and install the latest firmware to patch security vulnerabilities and improve stability.

Step 4: Use and Monitor the DSL Modem Effectively

Getting your modem online is only half the job. For effective long-term use, you'll need to understand how it connects, manage your network traffic, and be aware of potential issues.

Internet Connectivity

When connecting to the internet, your modem will authenticate with your ISP using a predetermined protocol. It will also obtain an IP address and any other information needed to access the Internet.

If your ISP is assigning dynamic IPs, your device will receive a new IP address every so often. Once your modem has the necessary information, your devices should be able to access the Internet, either directly from the modem or via a router.

Traffic and Bandwidth Management

Regardless of which modem you use, most devices come with some Quality of Service (QoS) features. These features can help with tasks such as prioritizing Voice over IP (VoIP) traffic, streaming traffic, and evenly distributing bandwidth among downloads and simultaneous users.

Monitoring and Troubleshooting

Thankfully, most modems come equipped with built-in diagnostic tools to help with basic features such as checking signal strength, reviewing errors, and resetting the connection. Checking signal strength usually involves measuring the signal-to-noise ratio (SNR).

Error logs help further troubleshoot any issues, such as authentication failures. The ability to troubleshoot within the User Interface (UI) is helpful when dealing with several types of connectivity issues.

Step 5: Know the Use Cases and Limitations

While DSL modems are still used in some areas, they aren't the best option everywhere. Understanding when and where to use them is the key to deploying them effectively.

Where DSL Is Still Common

DSL modems are still primarily found in rural areas, small businesses, and multi-dwelling buildings. Rural areas still largely lack the updated infrastructure of cable and fiber connections, making DSL’s telephone cable utilization a great option.

Small businesses often rely on legacy equipment, so DSL modems help mitigate the cost of major upgrades to network infrastructure, regardless of whether cable and fiber are viable options. Additionally, multi-dwelling units are a great candidate for DSL modems as a way to curb the cost of major infrastructure upgrades, similar to why a small business might still use DSL.

Pros

A major benefit of DSL is its widespread availability in underserved and sparsely populated areas. It’s also a simple and inexpensive method to gain reliable access to the Internet using existing infrastructure.

Cons

The negative to using an outdated technology is, of course, that it’s going to be slower and less capable than more modern technologies. It cannot compare to fiber or satellite speeds, and its compatibility and upgrade potential are limited. Depending on the needs of your network, it may be worth upgrading your network infrastructure and technology.

Conclusion

DSL modems are largely overlooked in more densely populated areas, but they are still widely used in less populated and more isolated communities. Knowing how to interact with and troubleshoot DSL modems is still an integral part of being a well-rounded network practitioner.

Understanding how DSL modems work—and how to configure them—can help you prepare for the CompTIA Network+ certification exam. To learn more about networking technologies, check out CBT Nuggets' Networking Fundamentals Online Training course.
